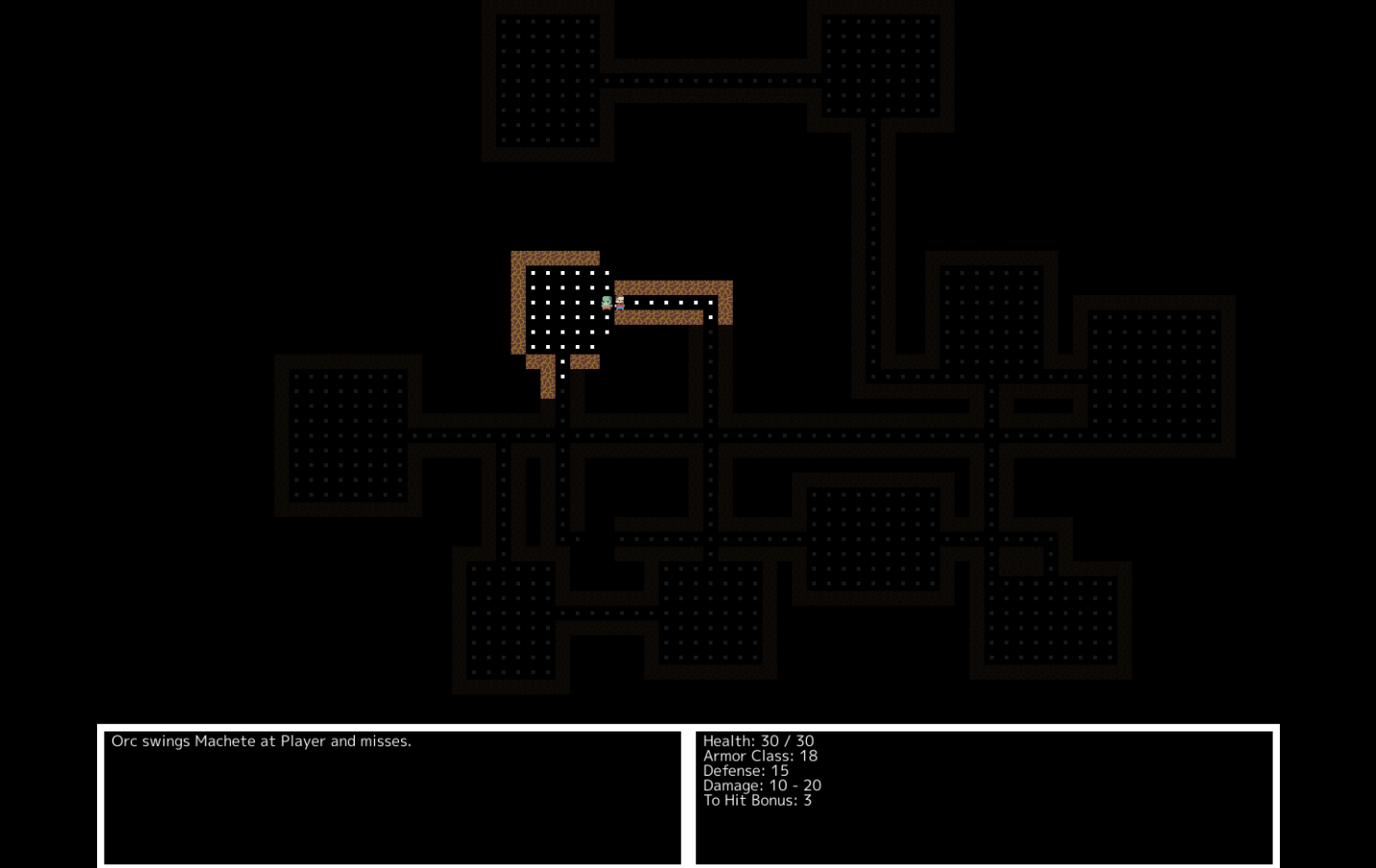

Go + ECS + Roguelike

Project Link

This was a real fun project to work on. Implementing an entity component system in golang from a basic tutorial. Next steps would be to experiment utilizing SQLite instead of in-memory storage.

• https://www.roguebasin.com/index.php?title=How_to_Write_a_Roguelike_in_15_Steps
• https://www.fatoldyeti.com/

ECS: The Game Server

An Entity-Component-System (ECS) is a software architecture pattern commonly used in game development to organize and manage game objects and their behavior. It separates objects into three main parts: Entities, Components, and Systems, which helps improve flexibility, scalability, and performance. Here’s a high-level explanation of each part:

Entities

• What They Are: Entities are unique identifiers (often just an integer or a lightweight object) that represent individual game objects.
• What They Do: By themselves, entities don’t have any data or behavior. They are essentially placeholders or tags to which components can be attached.

Example:

• Entity 1 represents a player.
• Entity 2 represents an enemy.

Components

• What They Are: Components are modular pieces of data that define the attributes or properties of an entity.
• What They Do: Components don’t have behavior; they only store data. An entity becomes meaningful by attaching a collection of components to it.

Example:

• A player (Entity 1) might have:
  • A Position component (x: 10, y: 20).
  • A Health component (value: 100).
  • A Sprite component (image: player.png).
• An enemy (Entity 2) might have:
  • A Position component (x: 50, y: 30).
  • A Health component (value: 50).
  • A Behavior component (type: aggressive).

Systems

• What They Are: Systems are functions or processes that operate on entities with specific components.
• What They Do: Systems contain the logic of the game. They query entities that have the components the system cares about and perform operations on them.

Example:

• A Render System might:
  • Query all entities with Position and Sprite components.
  • Draw the sprites at their respective positions.
• A Movement System might:
  • Query all entities with Position and Velocity components.
  • Update their positions based on velocity.

Why ECS is Useful

1. Decoupling:
   • Data (components) is separated from logic (systems), making code easier to maintain and extend.
2. Flexibility:
   • You can dynamically add, remove, or modify components for an entity, allowing objects to change behavior at runtime.
3. Performance:
   • Systems often operate on flat, contiguous arrays of data (all components of a specific type), making ECS cache-friendly and efficient for large-scale simulations.
4. Scalability:
   • It’s easier to manage thousands of entities since ECS focuses on efficient processing of data.

Example in Practice

Imagine a 2D game with a player and some enemies:

• Entities: Player, Enemy1, Enemy2.
• Components:
  • Position: (x, y) for spatial data.
  • Velocity: (vx, vy) for movement.
  • Health: For tracking hit points.
  • Sprite: For graphical representation.
• Systems:
  • MovementSystem: Updates position based on velocity.
  • CollisionSystem: Detects collisions between entities.
  • RenderSystem: Draws entities with a Sprite at their Position.

Game Loop Workflow:

1. MovementSystem updates all Position components.
2. CollisionSystem checks for collisions between entities and adjusts their Health.
3. RenderSystem draws all entities with a Sprite at their updated Position.

Summary

• Entities: Unique IDs representing objects.
• Components: Modular data that defines object properties.
• Systems: Logic that processes entities with specific components.
